Energy Type

Natural Gas - LPG - Electric

Insulation

Z block high density ceramic fiber

Circulation

With rotor installed in the middle of the base.

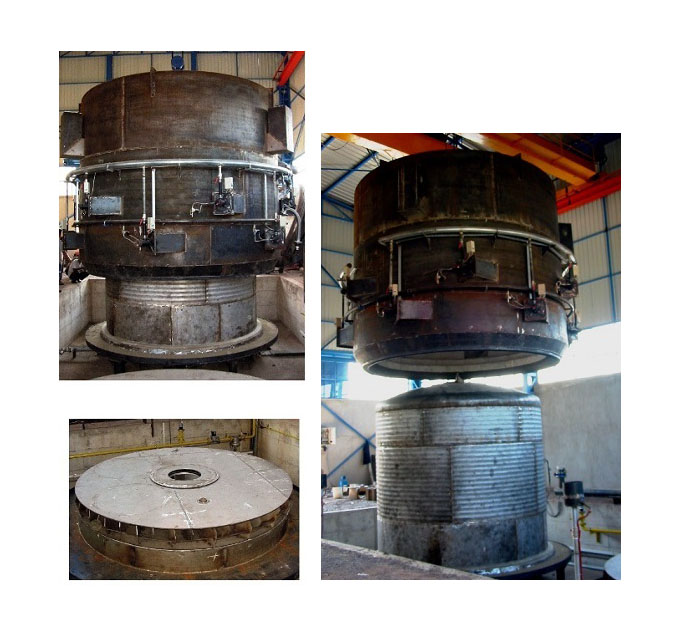

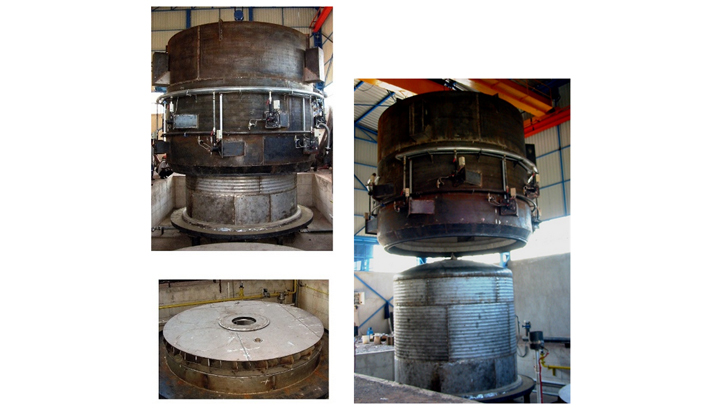

Furnace base and inner bell - muffle is designed in a way to enhance the air circulation

Control

Standart

Automatic

Designed with 2 thermocouples. One for heat control one for overheat

System failures can be monitored by the warning light located on the control panel

Sıcaklık kontrolü PID. olarak yapılmaktadır.  (rezistanslı sistemlerde)

Sessiz çalışan ve uzun ömürlü SS röleler kullanılmaktadır. (rezistanslı sistemlerde)

Optionals

Different programs can be entered via programming device

Touch-screen control system

Touch-screen PLC control system

Temperature detection and monitoring from different points in the furnace

Process curves can be saved in a computer and print outs can be saved if needed

Proportinal burner control system (Natural Gas - LPG)

Custom designed furnaces according to your needs and expectations.

Our furnaces offer long service life as a result of their rigid design and high quality materials.

By using high quality insulation materials and adequate number of layers energy costs are decreased significantly.

Bemaktherm will keep supporting his customers in order the run their furnaces flawlessly.

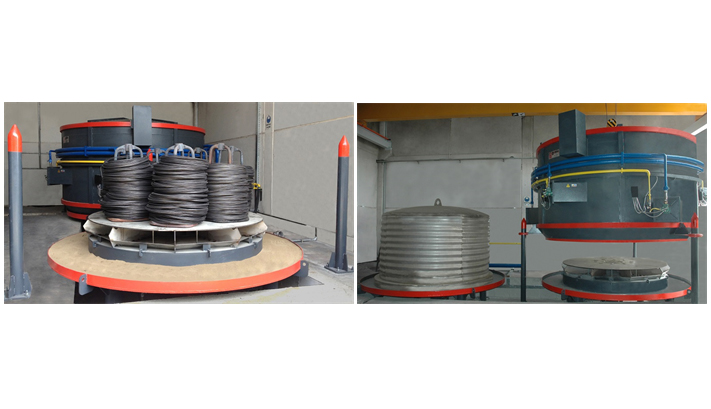

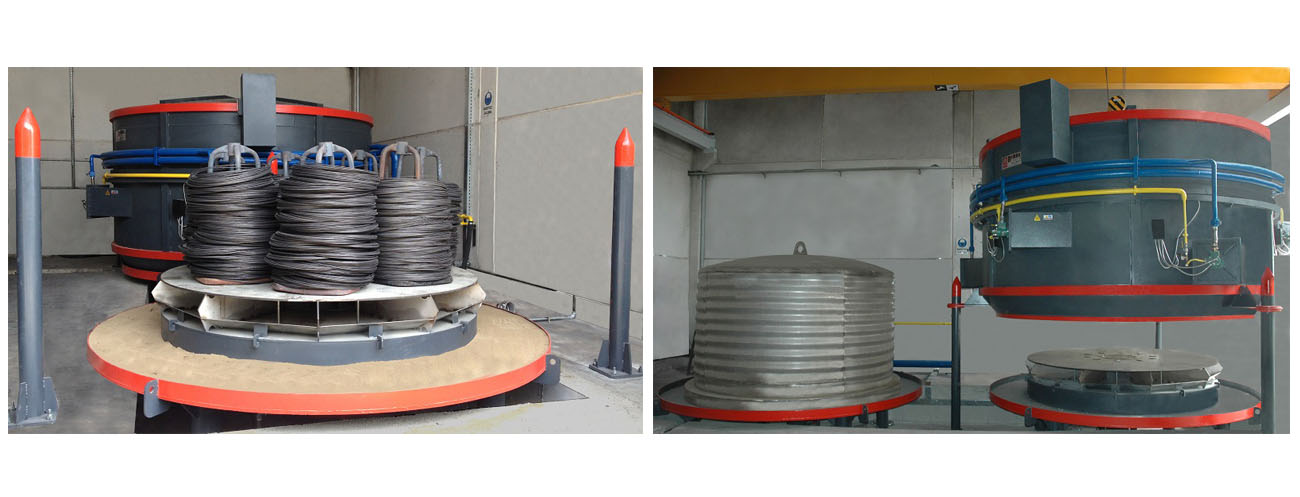

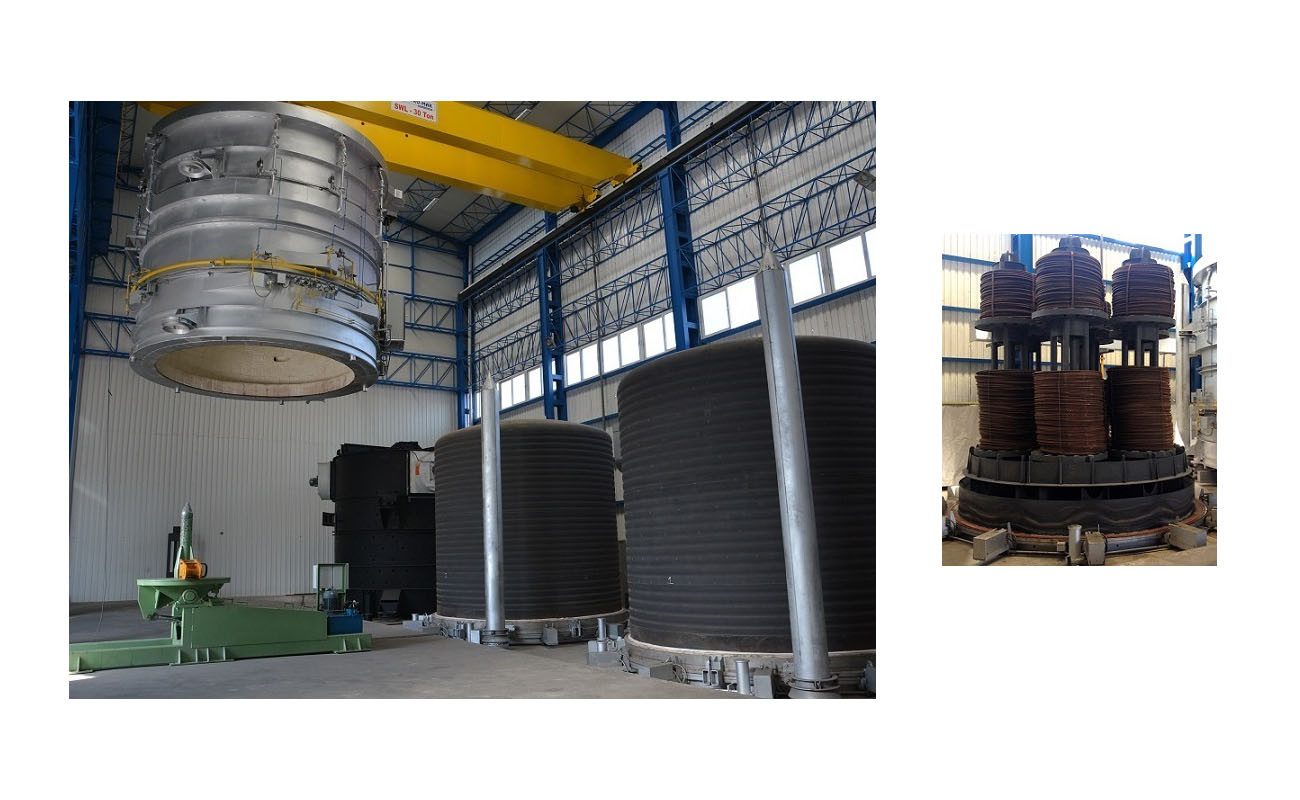

System is composed of 2 base - 2 inner bell - 1 heating bell for higher production capacities

Cooling Bell (to decrease the cooling time)
