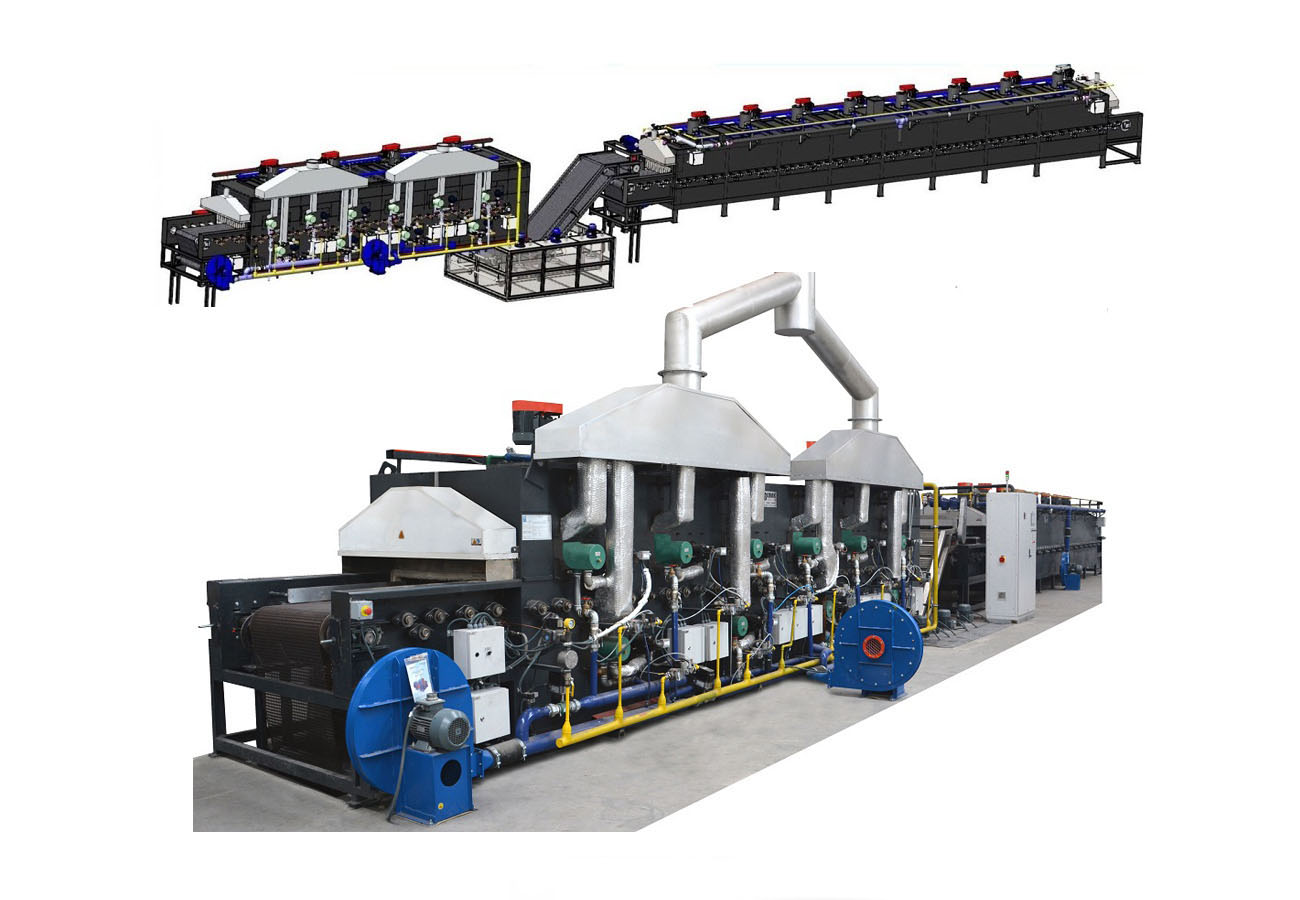

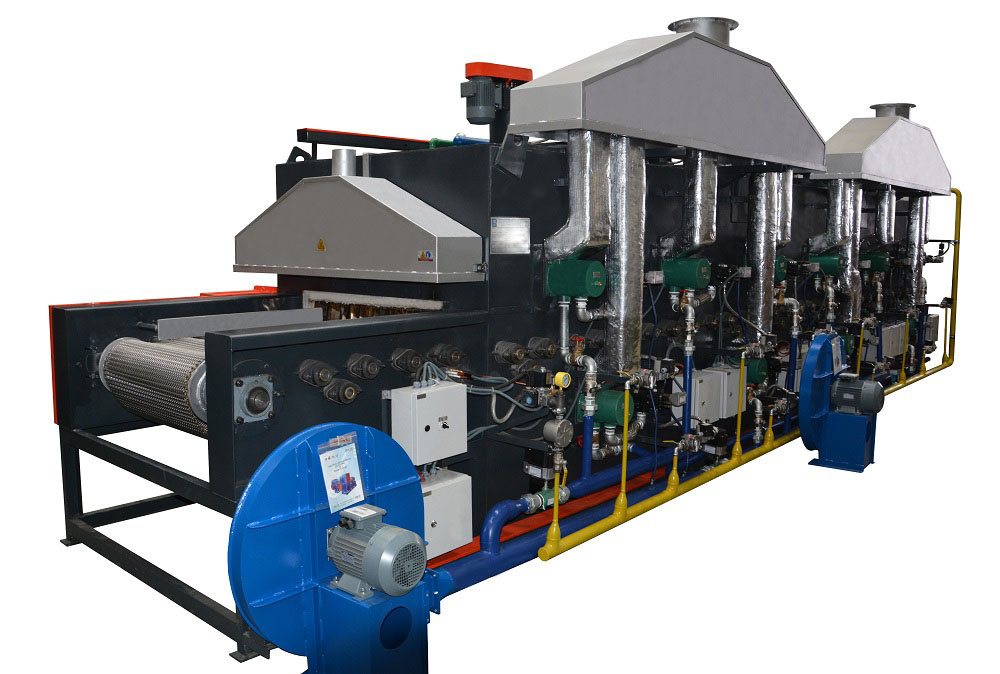

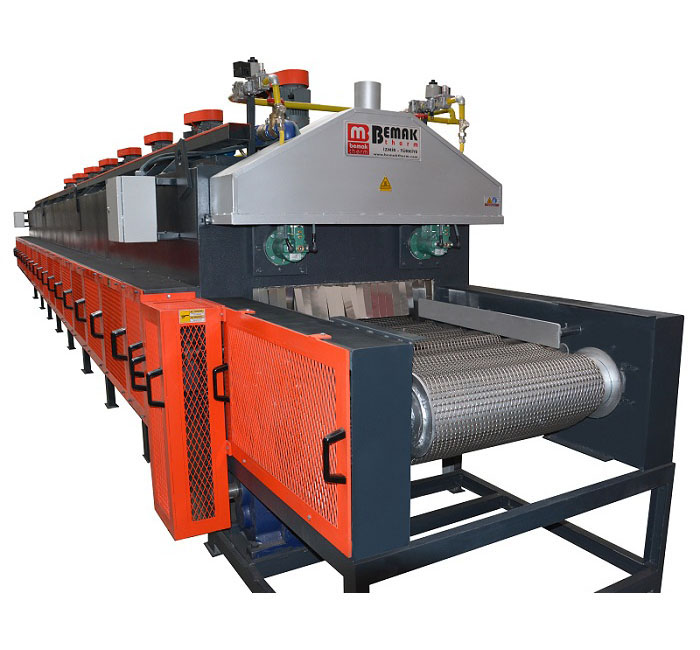

Continuous Heat Treatment Plant with Protective Atmosphere
Energy Type
Natural Gas - LPG - Electric
Insulation
Board - High temp. insulation bricks
Control
Automatic
Heating zones can be controlled seperately
Faults can be followed from the fault lamps on the system diagram on the panel.
PID. temperature control system (electric heating systems)
Precise homogenity can be achieved with proportional control in gas heated systems.
Process curves can be stored in the computer.
Heating zones can be controlled seperately
Faults can be followed from the fault lamps on the system diagram on the panel.
PID. temperature control system (electric heating systems)
Precise homogenity can be achieved with proportional control in gas heated systems.
Process curves can be stored in the computer.
Protective Atmosphere
Nitrogen
Advantages
In gas systems, radiant tubes with low deformation rate and long life, cast from special alloyed high temperature resistant material - are used.
Fuel savings of up to 20% can be achieved with recuperative burners gas systems.
Long life and low maintenance costs are provided with self-lubricating and cooled high temperature resistant bearings.
Homogeneous heat and protective gas distribution is provided in the furnace with circulators cast from special alloy material.
Protective gas consumption is reduced to minimum levels with high temperature resistant flexible curtains and flame curtain system at the entrances and exits of the furnaces.
The hardening oil is kept at a constant temperature by being heated when necessary and cooled when necessary with the resistance and heat exchanger system.
In terms of operational safety, a dry air exchanger is used instead of the water-cooled heat exchanger system and the risk of water mixing with the oil is prevented.
It is ensured that the oil temperature is the same in all parts of the tank with the mixers used in the appropriate number and design
With special sizes and designs, it is possible to make projects according to the desired capacity.
With the use of state-of-the-art insulation materials and the selection of appropriate materials, energy leaks have been reduced and fuel consumption has been reduced to minimum levels.
Necessary sealing measures are taken at the entrance and exit points of the moving parts (propeller shafts - rollers) to ensure that a protective atmosphere can be formed sensitively.
Our furnaces offer low maintenance costs and long service life with their suitable and high quality material selection, rigid designs.
Elevator / vibratory feeding system
Automatic weighing system
Belt washing machine
Fuel savings of up to 20% can be achieved with recuperative burners gas systems.
Long life and low maintenance costs are provided with self-lubricating and cooled high temperature resistant bearings.
Homogeneous heat and protective gas distribution is provided in the furnace with circulators cast from special alloy material.
Protective gas consumption is reduced to minimum levels with high temperature resistant flexible curtains and flame curtain system at the entrances and exits of the furnaces.
The hardening oil is kept at a constant temperature by being heated when necessary and cooled when necessary with the resistance and heat exchanger system.
In terms of operational safety, a dry air exchanger is used instead of the water-cooled heat exchanger system and the risk of water mixing with the oil is prevented.
It is ensured that the oil temperature is the same in all parts of the tank with the mixers used in the appropriate number and design
With special sizes and designs, it is possible to make projects according to the desired capacity.
With the use of state-of-the-art insulation materials and the selection of appropriate materials, energy leaks have been reduced and fuel consumption has been reduced to minimum levels.
Necessary sealing measures are taken at the entrance and exit points of the moving parts (propeller shafts - rollers) to ensure that a protective atmosphere can be formed sensitively.
Our furnaces offer low maintenance costs and long service life with their suitable and high quality material selection, rigid designs.
Elevator / vibratory feeding system
Automatic weighing system
Belt washing machine
HARDENING FURNACE
