Compact Curing Furnaces

Compact Curing Furnaces

Energy Type
Electric - Natural Gas - LPG
Insulation
Taş Yünü - Ceraboard
Control - Standard Features
Automatic temperature control.
Min. 2 thermocouples are used; one for temperature control and one for safety.
System faults can be monitored via warning lights on the control panel.
PID temperature control is used. (electric heating systems)
Silent and long-life SSR relays are used. (electric heating systems)
Control - Optional Features
Multi-step programs can be entered via the programming device.
Touch-screen control system.
Touch-screen PLC control system.
Temperature sensing from different points.
Process curves can be stored on a computer and historical outputs can be obtained.
Proportional burner control system. (gas systems)
Advantages
Custom furnace dimensions and designs can be provided according to application requirements.
Rigid construction and high-quality materials provide long service life under demanding industrial conditions.
Modern insulation materials help minimize energy losses and reduce operating costs.
Bemaktherm supports its customers with continuous after-sales service.
Optional
Lifting door (manual counterweight - pneumatic - hydraulic)

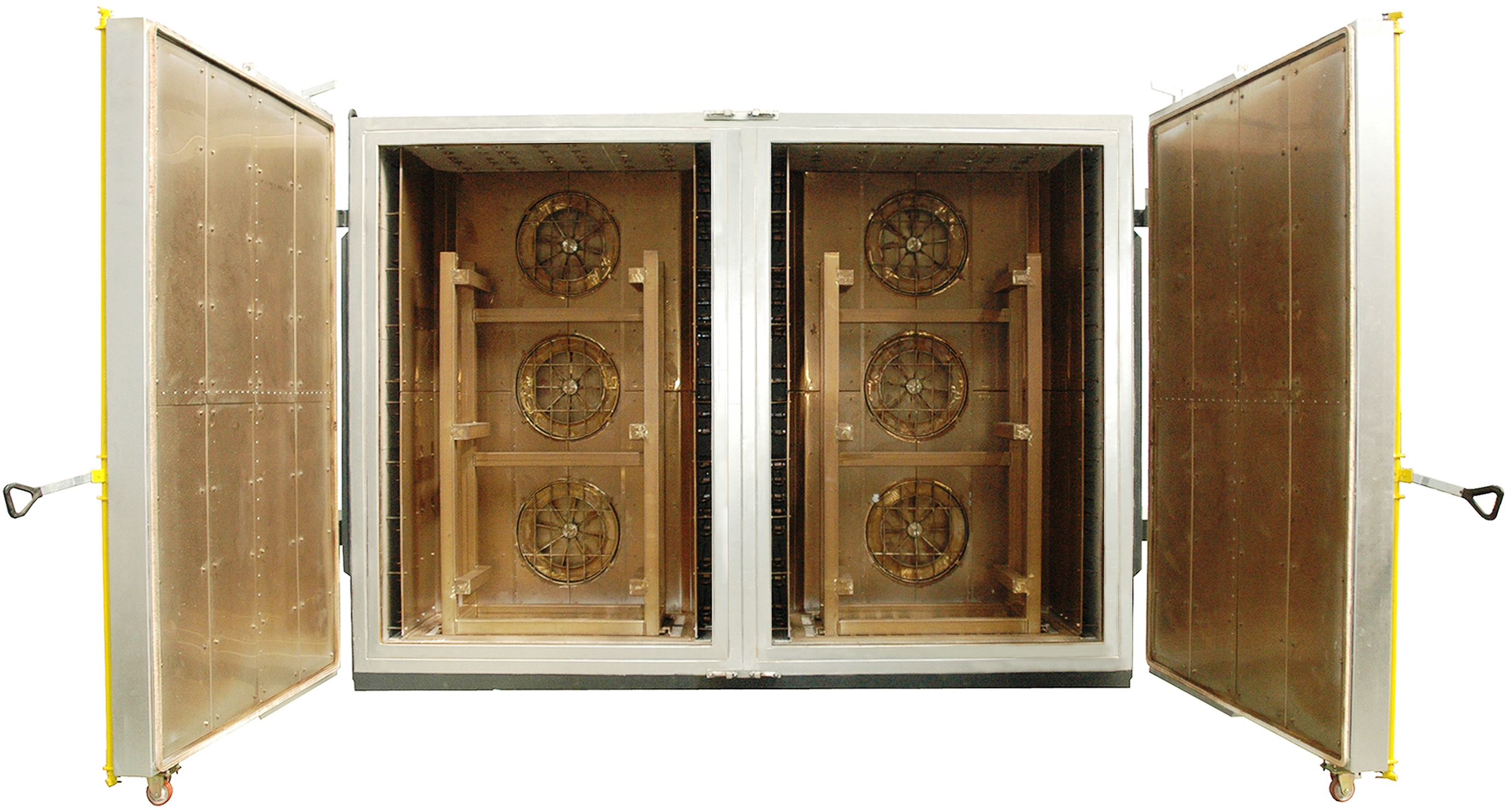

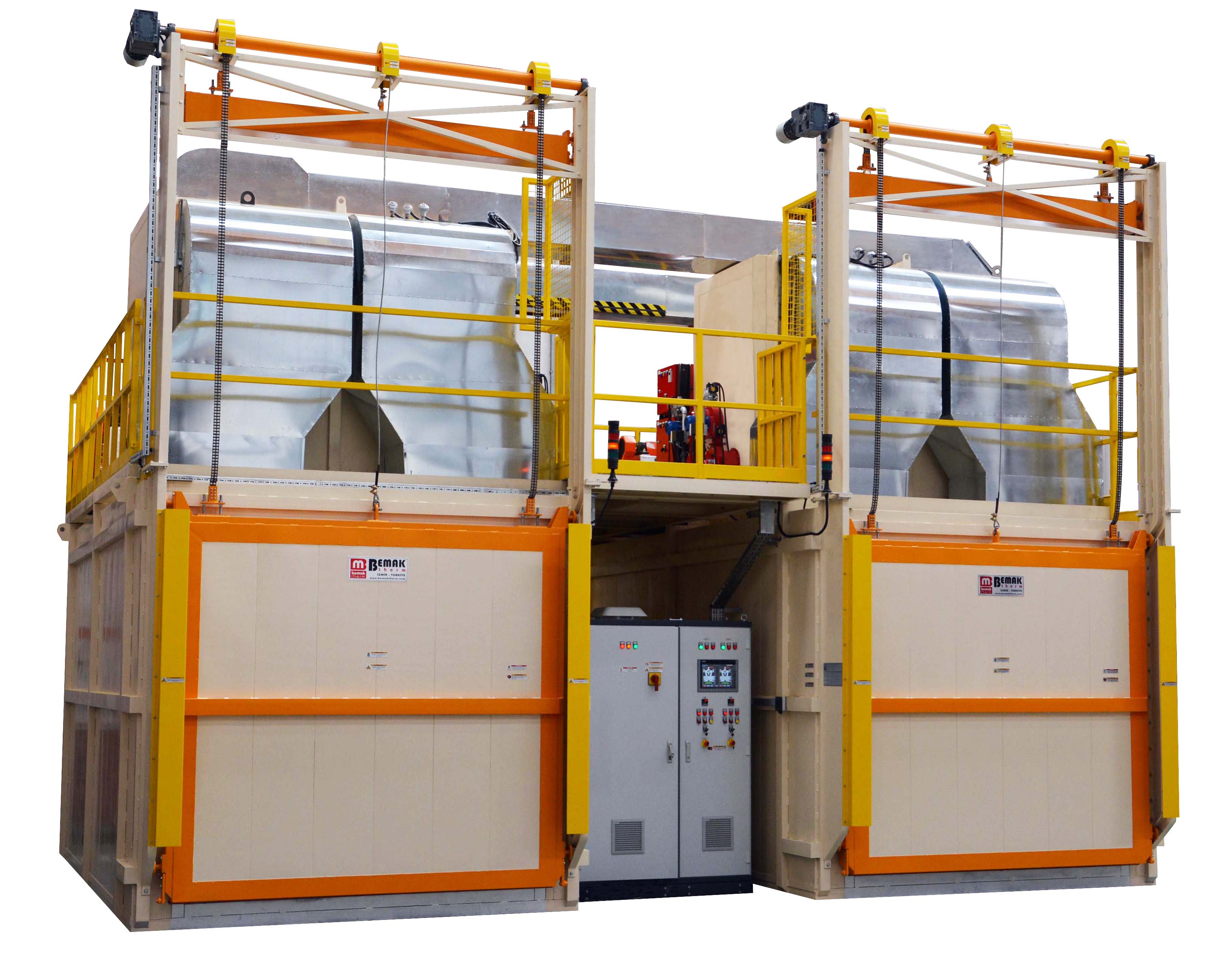

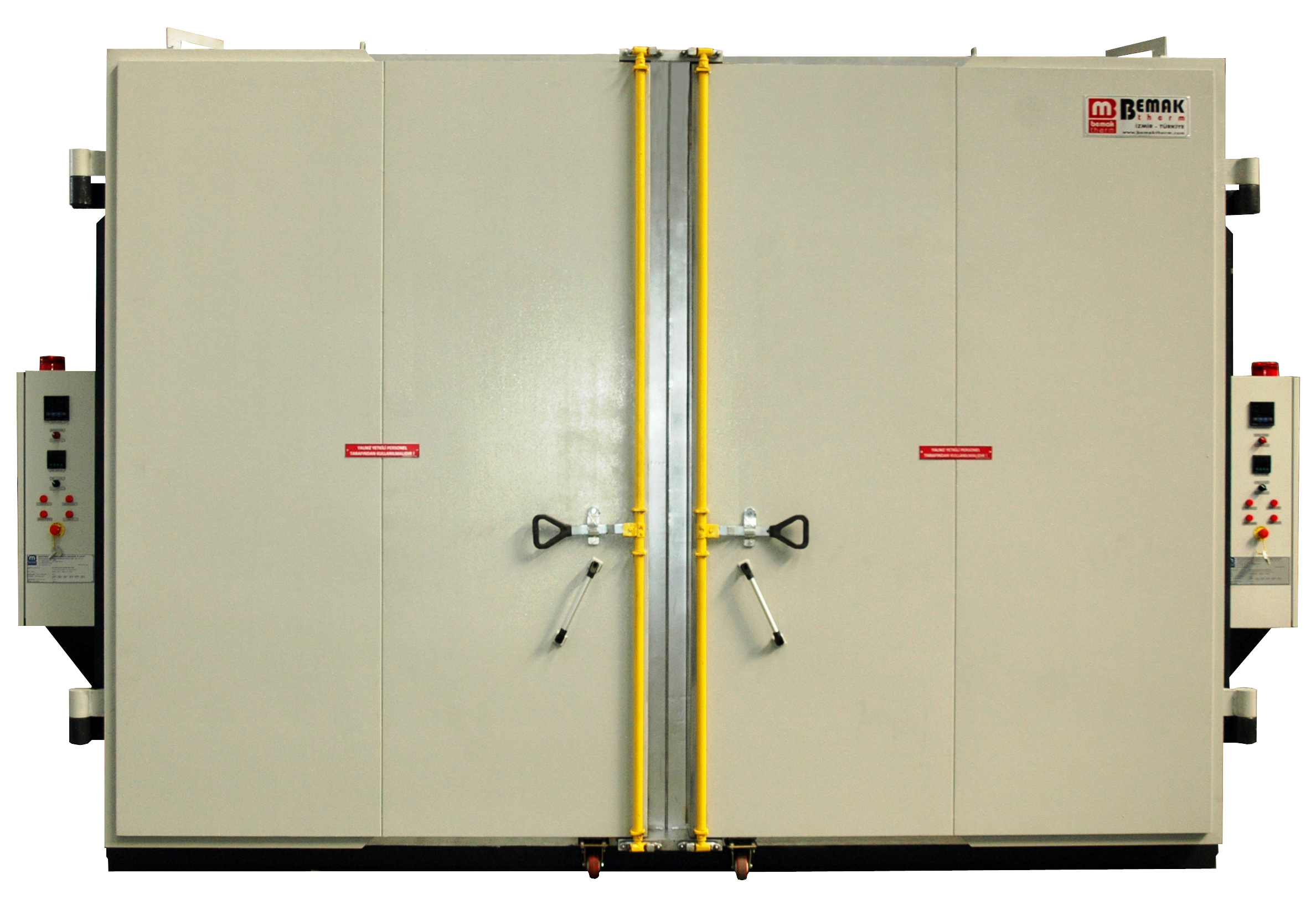

ABBRASIVE CURING FURNACE

ABBRASIVE CURING FURNACE

Usable Area
En : 2250 mm x Boy : 4500 mm x h : 2250 mm
Energy Type
Natural Gas
Max. Temperature
210 °C
Control
Automatic - PLC controlled
System consists of 2 independent furnaces.
Furnaces are PLC controlled and connected to the computers for sending process output.

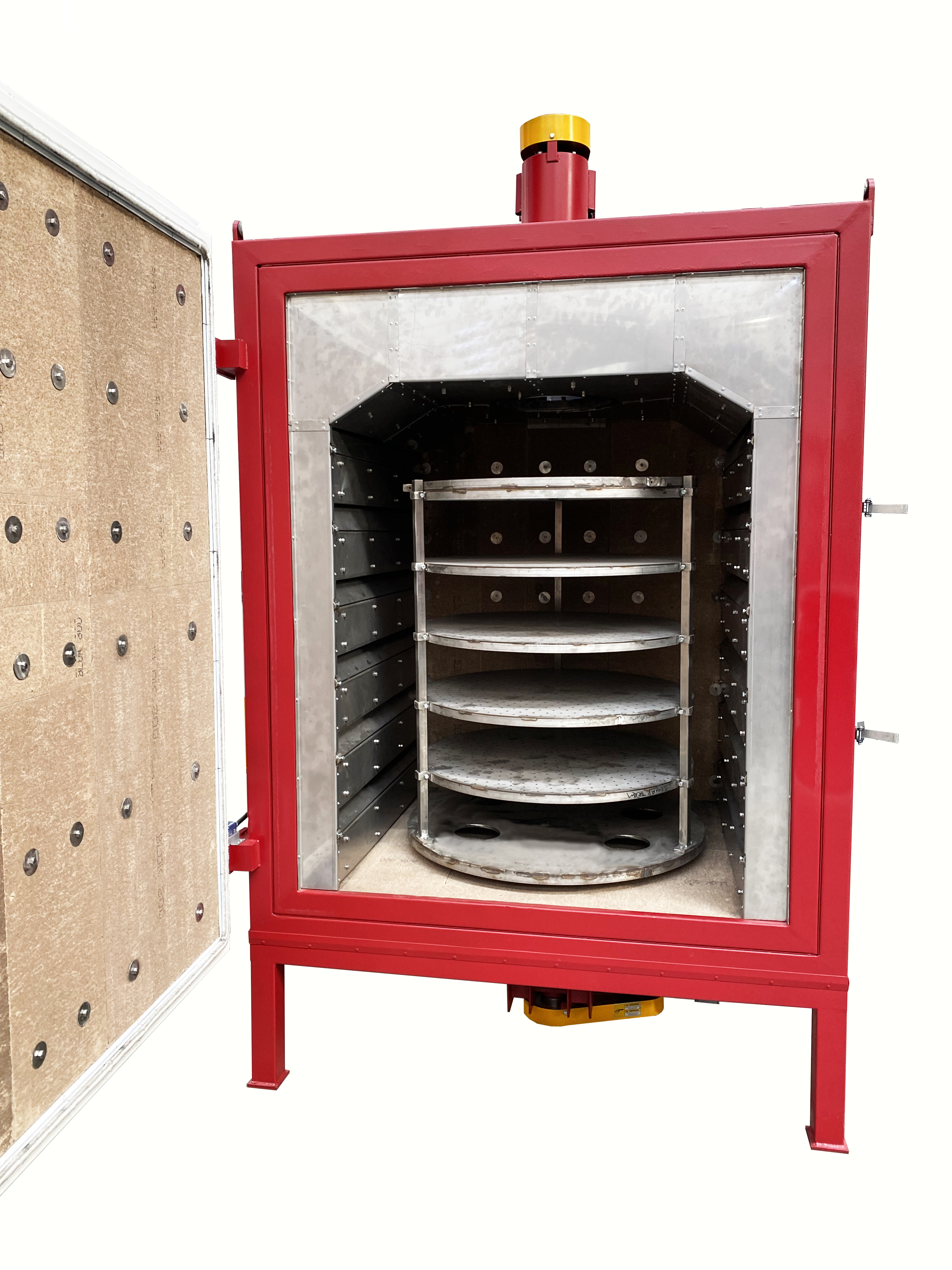

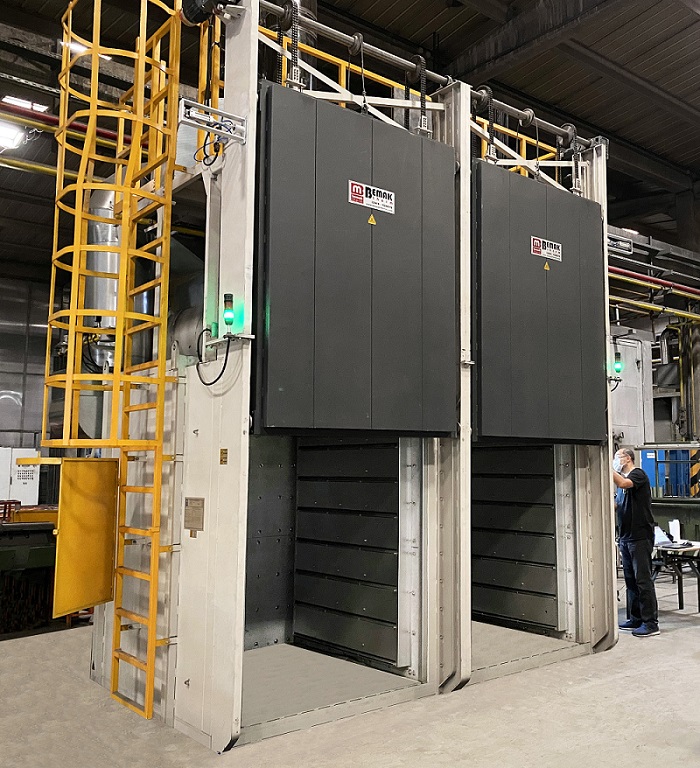

ABBRASIVE CURING FURNACE

ABBRASIVE CURING FURNACE

Usable Area
En : 2 x 700 mm x Boy : 1500 mm x h : 1750 mm
Energy Type
Natural Gas
Max. Temperature
500 °C
Control
Automatic - PLC controlled
urnace is designed with 2 heating zones which can be controlled seperately.
Heating and cooling can be programmed as intended.

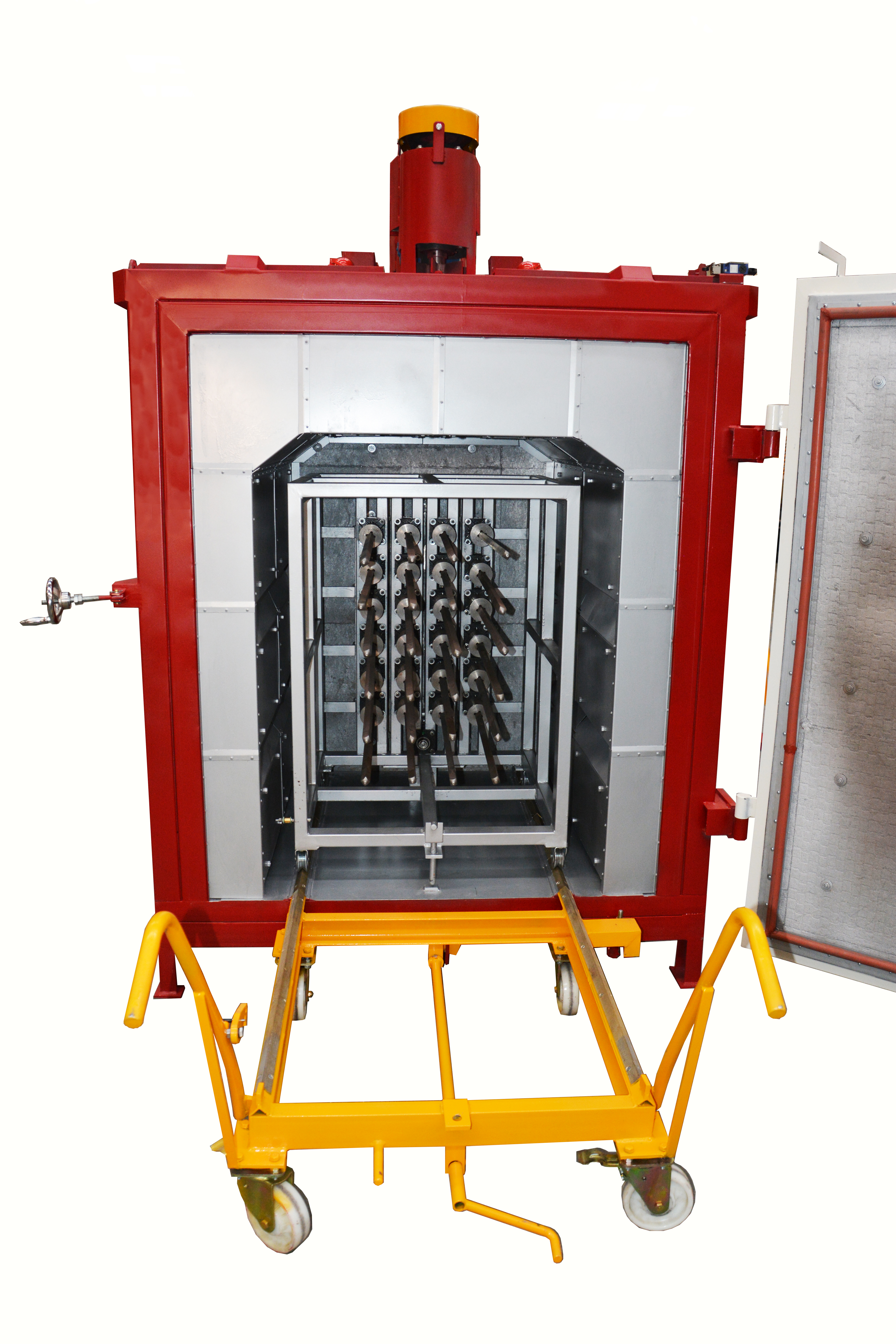

ELECTRODE DRYING AND CURING FURNACE ELECTRODE DRYING AND CURING FURNACE

ELECTRODE DRYING AND CURING FURNACE

Usable Area
En : 2 x 1600 mm x Boy : 800 mm x h : 2750 mm
Energy Type
Natural Gas
Max. Temperature
500 °C
Control
Automatic - PLC controlled
Furnace is designed with 2 heating zones which can be controlled seperately.
Heating and cooling can be programmed as intended.
VARNISH DRYING / CURING FURNACE

VARNISH DRYING / CURING FURNACE

Usable Area
En : 815 mm x Boy : 920 mm x h : 1260 mm
Energy Type
Electric
Max. Temperature
200 °C
Control
Automatic - Programmable
← CURING FURNACES
Bemaktherm

In addition to industrial furnaces, our production range also includes turnkey plants together with the required auxiliary equipment and machinery.
